How to Fill a Gap Stick Welding
To fill a gap while stick welding, follow these steps:
1.
Position the metals with the appropriate gap between them.
2.
Clean the gap to remove any debris, rust, or dirt.
3.
Select the right electrode for the metals and gap size.
4.
Adjust the welding machine’s current settings according to the thickness and gap size.
5.
Tack weld the ends of both sides of the gap to hold them in place.
6.
Fill the gap by moving the electrode in a controlled manner, creating weld beads.
7.
Control the heat by using weaving techniques and proper amperage to avoid overheating.
8.
After each pass, clean excess slag and inspect the weld for proper penetration and fusion.
9.
Repeat the welding process if needed until the gap is completely filled.
10.
Allow the welded metal to cool down gradually before removing any clamps or fixtures to avoid stress and distortion.
Check this out:
Did You Know?
1. Stick welding, also known as shielded metal arc welding (SMAW), was first developed in the late 1800s by a Russian inventor named Nikolay Benardos.

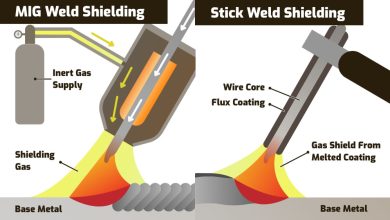

2. The filler metal used in stick welding is typically in the form of a consumable electrode coated in flux. This flux serves multiple purposes, such as providing shielding from atmospheric gases, stabilizing the arc, and forming a slag that protects the weld from contaminants.
3. Stick welding is one of the oldest and most versatile welding processes. It can be performed in various positions, including flat, horizontal, vertical, and even overhead.
4. In underwater welding, a specialized form of stick welding called shielded metal arc welding underwater (SWAW) is used. It is a challenging and hazardous process performed by skilled divers using water-resistant electrodes.
5. Although stick welding is often associated with industrial applications, it is also commonly used in artistic welding. Many sculptures, decorative pieces, and architectural elements are created using stick welding techniques, showcasing the versatility and beauty of this welding method.
Positioning The Metals
Properly positioning the metals is crucial for a successful gap stick welding. Ensure that the metals are aligned and have a suitable gap between them. This gap allows the welding operator to fill it with weld beads, ensuring a strong and secure bond between the metals. The size of the gap will depend on the thickness and type of metals being welded, as well as the welding technique used.
- Properly position the metals.
- Align the metals and maintain a suitable gap.
- Fill the gap with weld beads for a strong bond.
- Gap size depends on metal thickness, type, and welding technique.
“Properly positioning the metals is crucial for a successful gap stick welding.”
Cleaning The Gap
Before starting the welding process, it is essential to clean the gap to ensure the highest quality weld. Any debris, rust, or dirt present in the gap can compromise the integrity of the weld. Use a wire brush or a suitable cleaning tool to remove any impurities. Additionally, an acetone or alcohol-based cleaner can be used to remove any grease or oil residue.
By thoroughly cleaning the gap, you create a clean surface for the weld to bond to, resulting in a strong and durable joint.
- Clean the gap using a wire brush or suitable cleaning tool
- Use acetone or alcohol-based cleaner to remove grease or oil residue
“Thoroughly cleaning the gap creates a clean surface for the weld to bond to, ensuring a strong and durable joint.”
Choosing The Right Electrode
Selecting the correct electrode is essential for achieving a successful gap fill with stick welding. The electrode should be compatible with the metals being welded and the size of the gap. Electrodes come in various types, each with its specific properties and applications. For example, low-hydrogen electrodes are suitable for welding high-strength steels, while stainless steel electrodes are designed for welding stainless steel alloys. Consult the electrode manufacturer’s recommendations or seek advice from a welding expert to choose the electrode that suits your needs.
Adjusting The Current
Properly adjusting current settings of the welding machine is crucial for achieving optimal results. The current should be adjusted depending on the thickness of the metals being welded and the size of the gap. A higher current setting may be required for thicker metals and larger gaps, while lower currents may be suitable for thinner materials. Adjusting the current accordingly ensures that the weld bead fuses properly with the metals, resulting in a strong and reliable joint.
Tack Welding
Tack welding is a crucial step in stick welding for filling gaps. Before filling the gap, it is important to tack weld the ends of both sides of the gap. Tack welds perform the task of holding the metals in place and preventing any movement during the welding process. To create these tack welds, simply strike an arc between the electrode and the metals at different points along the gap. It is essential to space these tack welds evenly to ensure proper alignment and provide sufficient support when filling the gap.
Filling The Gap
Once the tack welds are in place, you can start filling the gap with weld beads. To fill the gap, move the electrode in a controlled manner, gradually filling the gap with the molten metal. Maintain a consistent travel speed and electrode angle to ensure uniform weld beads and proper fusion with the base metals. It is crucial to keep the heat and penetration levels consistent throughout the welding process. Proper control of the heat can be achieved through techniques such as weaving and adjusting the amperage.
Filling a gap with stick welding requires careful attention to detail and proper technique. By following these tips and expert techniques, you can achieve flawless welds that provide strength and durability. Remember to:
- Position the metals correctly
- Clean the gap thoroughly
- Choose the right electrode
- Adjust the current settings
- Tack weld to hold the gap in place
- Fill the gap with controlled movements
With practice and patience, you can master the art of filling a gap with stick welding.
Frequently Asked Questions
How do you fill a gap with 7018?
To fill a gap with a 7018 stick, begin by removing the majority of the heavy coating, allowing a small amount to remain. Position yourself at the bottom of the gap and initiate the arc with another rod. Simultaneously, feed the 7018 rod with the knocked-off flux into the molten puddle, treating it like a TIG rod. This technique aids in filling and cooling the puddle as you progress across the gap, giving you control over the welding process.
What is gap filling in?
Gap filling is a technique used in language learning to reinforce specific language skills. It is a practice exercise where learners are tasked with filling in missing words in a given text. This exercise helps learners develop their language proficiency by allowing them to practice and apply specific language points in context. By actively engaging learners in the process of selecting and inserting the appropriate words, gap filling enhances their understanding and retention of the language. It provides an interactive way for learners to strengthen their language skills and improve their overall fluency.
1. What are some common techniques or methods for effectively filling gaps while stick welding?
There are several common techniques for effectively filling gaps while stick welding. One technique is called the “weave pattern.” This involves moving the welding electrode in a zigzag or side-to-side motion across the gap, filling it with weld metal. The weave pattern helps distribute the heat evenly, allowing for better penetration and fusion.
Another technique is called “backstepping.” This involves starting the weld at the end of the gap and then moving backwards, filling it in small increments. Backstepping helps avoid excessive heat buildup and maintains better control over the weld puddle, resulting in a smoother and stronger weld. Additionally, using smaller-diameter electrodes can be helpful for filling gaps as they allow for better control over the deposition of weld metal.
2. Are there any specific preparation steps or precautions to take when filling gaps with stick welding to ensure a strong and aesthetically pleasing weld?
Yes, there are specific preparation steps and precautions to take when filling gaps with stick welding to ensure a strong and aesthetically pleasing weld.
Firstly, it is important to clean the surfaces that will be welded thoroughly. Any dirt, grease, or rust should be removed to ensure proper adhesion of the filler metal. This can be done using a wire brush or grinder. Additionally, any gaps or inconsistencies in the joint should be properly prepared by grinding or chamfering to create a V-groove or U-groove. This will provide space for the filler metal to penetrate and create a stronger weld.
Secondly, proper electrode selection is crucial for effective gap filling. Choosing the correct electrode diameter and type based on the base metal and thickness is important. It is recommended to use larger diameter electrodes for filling gaps as they provide higher deposition rates. Additionally, controlling the arc length and travel speed during welding is essential. Ensuring a stable and correct arc length will help in achieving proper penetration and fusion of the filler metal with the base metal. Proper travel speed will help prevent overheating and distortion of the workpiece.
Overall, preparing the surfaces, selecting the right electrode, and controlling the arc length and travel speed are key precautions to take for strong and aesthetically pleasing welds when filling gaps with stick welding.
